Are Double-Wall Paper Cups Really More Insulating?
author: Iris
2025-12-19
I. The Scientific Principles of Double-Wall Paper Cup Insulation
1.1 The Three Basic Modes of Heat Transfer
To understand the insulation principle of double-wall paper cups, it's necessary to understand the three basic modes of heat transfer: conduction, convection, and radiation.
Heat conduction refers to the transfer of heat through direct contact between materials. In the case of a paper cup, when hot water is poured into the cup, heat is transferred from the inner layer to the outer layer through the cup wall material (paper). The efficiency of heat conduction depends on the thermal conductivity of the material; the higher the thermal conductivity, the faster the heat transfer.
Heat convection refers to the transfer of heat through the movement of fluids (liquids or gases). In a double-wall paper cup, if there is air flow between the two layers, convective heat transfer will occur, accelerating heat dissipation.
Heat radiation refers to the transfer of heat through electromagnetic waves. Any object with a temperature above absolute zero radiates heat outwards; the higher the temperature, the stronger the radiation.
Heat conduction refers to the transfer of heat through direct contact between materials. In the case of a paper cup, when hot water is poured into the cup, heat is transferred from the inner layer to the outer layer through the cup wall material (paper). The efficiency of heat conduction depends on the thermal conductivity of the material; the higher the thermal conductivity, the faster the heat transfer.
Heat convection refers to the transfer of heat through the movement of fluids (liquids or gases). In a double-wall paper cup, if there is air flow between the two layers, convective heat transfer will occur, accelerating heat dissipation.
Heat radiation refers to the transfer of heat through electromagnetic waves. Any object with a temperature above absolute zero radiates heat outwards; the higher the temperature, the stronger the radiation.
1.2 Thermal Characteristics of Paper Cup Materials
Paper cups are mainly made of cellulose material. According to scientific measurements, the thermal conductivity of paper is approximately 0.05-0.07 W/(m・K), and at standard temperature and pressure (25°C, 1 atmosphere), the thermal conductivity of paper is 0.05 W/(m・K). In comparison, the thermal conductivity of air is approximately 0.0257-0.0264 W/(m・K) (at a room temperature of 25°C).
This means that the thermal conductivity of air is about 48% lower than that of paper, which is the key reason why double-wall paper cups can provide insulation. Air is a poor conductor of heat due to its large intermolecular spacing and low density, resulting in less heat transfer through molecular collisions. The random motion of molecules also hinders the direct conduction of heat.
This means that the thermal conductivity of air is about 48% lower than that of paper, which is the key reason why double-wall paper cups can provide insulation. Air is a poor conductor of heat due to its large intermolecular spacing and low density, resulting in less heat transfer through molecular collisions. The random motion of molecules also hinders the direct conduction of heat.
1.3 Insulation Mechanism of Double-Layer Structure
The insulation principle of double-wall paper cups is mainly based on the following aspects:
The insulating effect of the air layer is the core insulation mechanism of double-wall paper cups. By maintaining a 3-5mm air gap between the two layers of paper, a double-wall paper cup creates an effective insulation layer. This air layer significantly reduces heat conduction efficiency, lowering the surface temperature of the cup by more than 40% compared to a single-layer design.
The sealed structure prevents convection. The sealed structure of the double-wall paper cup prevents air flow, further reducing heat exchange. If the air between the two layers remains still, convective heat transfer will not occur, thus greatly improving the insulation effect.
Reflection of thermal radiation. The surface of the double-layer structure can reflect some thermal radiation, reducing heat loss. Although this radiation reflection effect is not as significant as the effects of conduction and convection, it is also a contributing factor to the insulation effect of the double-wall ripple paper cup.
The sealed structure prevents convection. The sealed structure of the double-wall paper cup prevents air flow, further reducing heat exchange. If the air between the two layers remains still, convective heat transfer will not occur, thus greatly improving the insulation effect.
Reflection of thermal radiation. The surface of the double-layer structure can reflect some thermal radiation, reducing heat loss. Although this radiation reflection effect is not as significant as the effects of conduction and convection, it is also a contributing factor to the insulation effect of the double-wall ripple paper cup.
1.4 Enhanced Effect of Corrugated Structure
In addition to the ordinary double-layer structure, there is also a corrugated double-wall paper cup on the market, which has even better insulation performance. The corrugated structure creates a wavy air layer between the two layers, creating more air retention space and further enhancing the insulation performance.
Technical data from Henan Xinding Paper Products Co., Ltd. shows that its standard insulated paper cup uses a 3-layer corrugated design (wave pitch 2mm), with a 0.5mm air interlayer. Tests show that after pouring 100℃ hot water, the outer wall temperature drops from 78℃ to 38℃, and the holding time is extended to more than 5 minutes.
Technical data from Henan Xinding Paper Products Co., Ltd. shows that its standard insulated paper cup uses a 3-layer corrugated design (wave pitch 2mm), with a 0.5mm air interlayer. Tests show that after pouring 100℃ hot water, the outer wall temperature drops from 78℃ to 38℃, and the holding time is extended to more than 5 minutes.
1.5 Synergistic Effect of Material Stacking
The lightweight multi-layer fiber structure used by Stora Enso represents another insulation technology route. By stacking multiple layers of fibers, tiny air interlayers are formed inside the cup body, utilizing the low thermal conductivity of air to achieve a natural insulation effect. This design not only improves insulation performance but also maintains the lightweight characteristics of the paper cup.
II. Experimental Design and Methods
2.1 Experimental Environment Control
To ensure the scientific validity and comparability of the test results, the experiment needs to be conducted under standardized environmental conditions. Based on relevant standards and research, the recommended experimental environmental conditions include:
- Ambient temperature: 20±2℃ or 26℃ (stringent conditions)
- Relative humidity: 50±5%
- Sample equilibration time: Before testing, paper cup samples should be placed in the testing environment for at least 24 hours to reach environmental equilibrium.
In the actual test, we chose 26℃ as the ambient temperature, which is considered the most stringent condition representing the most typical environmental temperature for hot beverage cups in real-world use scenarios, because at this temperature, the heat dissipation rate of the beverage in the cup is slower, and the beverage maintains a higher temperature for a longer time.
2.2 Test Parameter Settings
Based on reference materials and industry standards, we determined the following test parameters:
- Initial water temperature: 90±1℃ or 95℃. Studies show that the initial temperature of hot beverages is usually concentrated between 91.7℃ and 94.4℃, so we chose 95℃ as the starting temperature for the test.
- Water volume: 90% of the nominal capacity. This is an industry-standard testing method that simulates the filling of hot paper cups with lids in actual use.
- Measurement time points: According to scientific experimental design, we set the following measurement time points:
- First 10 minutes: Measure every 2 minutes
- Following 20 minutes: Measure every 5 minutes
- Total measurement time: 30 minutes
2.3 Temperature Measurement Method
In choosing the temperature measurement method, we compared two options: contact thermometers and infrared thermometers:
The advantage of contact thermometers is their high measurement accuracy, usually up to ±0.1℃, and their relatively simple and reliable operation. Their working principle is to maintain thermal contact with the object being measured, allowing for sufficient heat exchange to reach the same temperature, thereby measuring the object's temperature.
The advantage of infrared thermometers is non-contact measurement, which allows for safe measurement of temperatures in hard-to-reach or hazardous areas, and they have a fast response time, generally providing data within 1-2 seconds. Their working principle is to measure temperature by detecting the infrared radiation emitted by the object. Considering the unique characteristics of paper cups, we ultimately chose an infrared thermometer as the main measurement tool because it does not damage the integrity of the paper cup or affect the natural process of temperature change inside the cup.
The advantage of infrared thermometers is non-contact measurement, which allows for safe measurement of temperatures in hard-to-reach or hazardous areas, and they have a fast response time, generally providing data within 1-2 seconds. Their working principle is to measure temperature by detecting the infrared radiation emitted by the object. Considering the unique characteristics of paper cups, we ultimately chose an infrared thermometer as the main measurement tool because it does not damage the integrity of the paper cup or affect the natural process of temperature change inside the cup.
2.4 Measurement Position Standardization
To ensure the comparability of measurement results, we strictly standardized the measurement positions:
- Inner wall temperature measurement: The temperature probe was placed at 1/2 the height of the liquid level, which is the industry standard measurement position.
- Outer wall temperature measurement: Corresponding to the inner wall measurement position on the outside, ensuring consistency of the measurement position.
- Avoided measurement areas: The rim and bottom of the cup, as these areas have different heat transfer characteristics than the main body of the cup.
2.5 Experimental Repeatability Requirements
To ensure data reliability, we strictly followed the following repeatability requirements:
- Number of repetitions: Each sample was tested at least 3 times.
- Data processing: Calculate the average temperature value at each time point.
- Outlier handling: If a measurement result deviates significantly from other results, the cause needs to be analyzed and a decision made on whether to remeasure.
- Final result: The average value of multiple measurements was used as the final result.
2.6 Experimental Sample Preparation

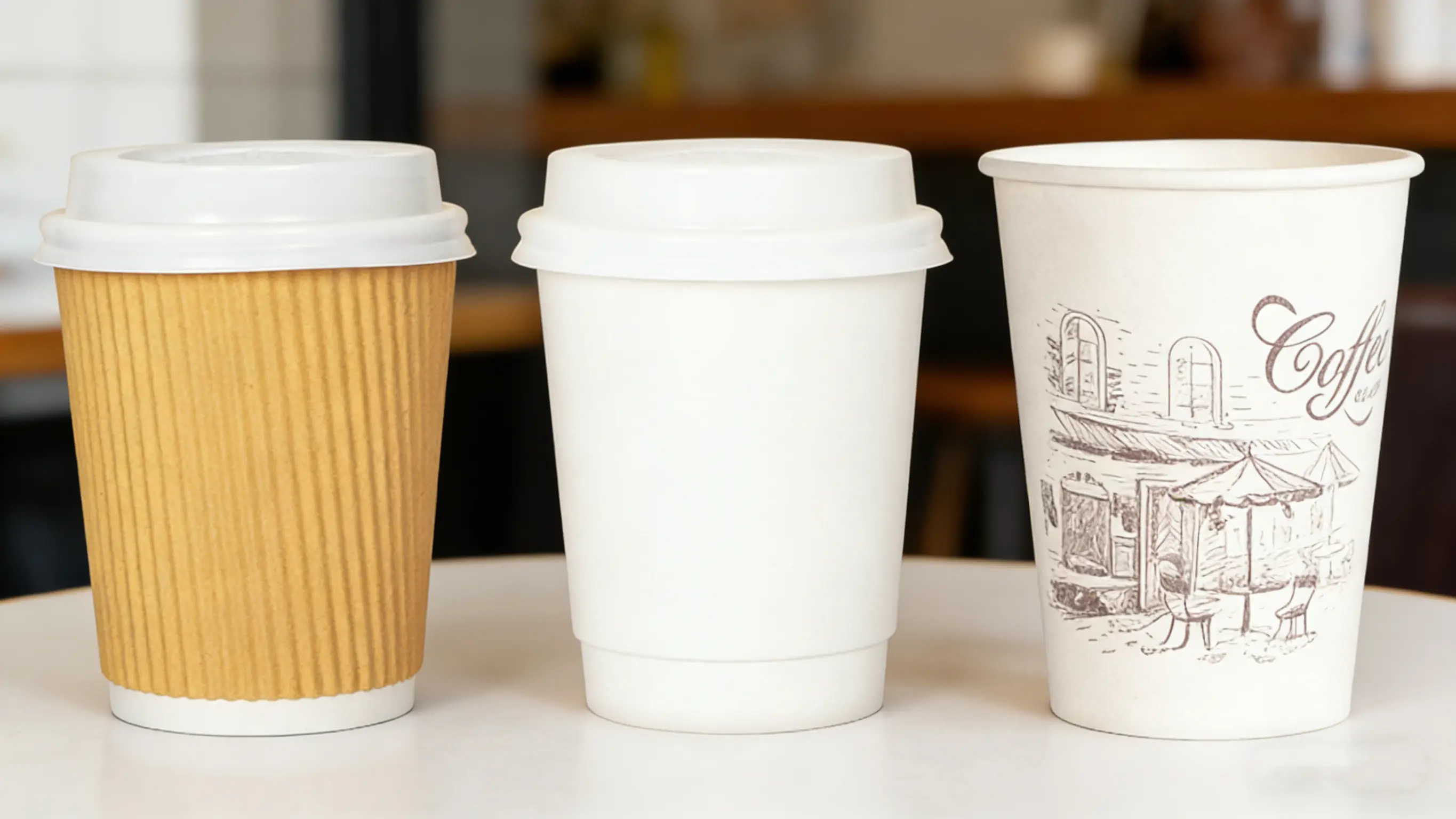

We prepared the following experimental samples:
- Single-layer paper cup: Ordinary disposable single-layer paper cup, capacity 250ml
- double-wall paper cup: Commonly available double-layer insulated paper cup, capacity 250ml
- Environmental control group: An empty cup, used to measure ambient temperature changes
All samples were from the same production batch to ensure consistency of materials and processes.
III. Measured Data and Analysis
3.1 Initial Temperature Measurement Results
At the beginning of the experiment, we measured the initial state of each paper cup:
- Ambient temperature: 26.0℃
- Hot water temperature: 95.0℃
- Initial outer wall temperature of single-layer paper cup: 26.5℃
- Initial outer wall temperature of double-wall paper cup: 26.3℃
The initial measurement results showed that the outer wall temperatures of both types of hot paper cups with lids were basically the same, both close to the ambient temperature, which verified that our sample balancing treatment was effective.
3.2 Outer Wall Temperature Data Over Time
According to the experimental design, we continuously measured the outer wall temperature of the two types of paper cups, obtaining the following data:
| Time (minutes) | Single-layer paper cup outer wall temperature (°C) | Double-wall paper cup outer wall temperature (°C) | Temperature difference (°C) |
| 0 | 26.5 | 26.3 | 0.2 |
| 2 | 38.2 | 29.8 | 8.4 |
| 4 | 48.5 | 34.2 | 14.3 |
| 6 | 56.8 | 37.9 | 18.9 |
| 8 | 63.2 | 41.0 | 22.2 |
| 10 | 68.5 | 43.8 | 24.7 |
| 15 | 73.2 | 47.5 | 25.7 |
| 20 | 76.8 | 50.2 | 26.6 |
| 25 | 79.5 | 52.5 | 27.0 |
| 30 | 81.5 | 54.3 | 27.2 |
3.3 Temperature Change Curve Analysis
Based on the measured data, we plotted the temperature change curves of the outer walls of the two types of paper cups over time. From the curves, we can see:
Temperature change characteristics of the single-layer paper cup:
- The temperature rises rapidly; within the first 10 minutes, the temperature increased from 26.5°C to 68.5°C, a rise of 42°C.
- The temperature rise trend shows a pattern of initially fast, then slower, but maintains a relatively high rate of increase overall.
- After 30 minutes, the outer wall temperature reached 81.5°C, close to the hot water temperature.
Temperature change characteristics of the double-wall paper cup:
- The temperature rise is significantly slower; within the first 10 minutes, the temperature increased from 26.3°C to 43.8°C, only a rise of 17.5°C.
- The temperature rise trend is relatively gentle, showing an approximately linear increase.
- After 30 minutes, the outer wall temperature reached 54.3°C, significantly lower than that of the single-layer paper cup.
3.4 Quantitative Analysis of Thermal Insulation Performance
Through the analysis of the measured data, we can quantify the thermal insulation advantages of the double-walled paper cup:
Temperature reduction: During the 30-minute test, the outer wall temperature of the double-walled paper cup was consistently approximately 24-27°C lower than that of the single-walled paper cup. This means that the double-walled paper cup can reduce the outer wall temperature by approximately 33-34%.
Comparison of temperature rise rates:
- Single-walled paper cup: The temperature rise rate in the first 10 minutes was 4.2°C/minute.
- Double-walled paper cup: The temperature rise rate in the first 10 minutes was 1.75°C/minute.
- The temperature rise rate of the double-walled paper cup is only 41.7% of that of the single-walled paper cup.
Grip temperature analysis: According to industry research, when holding hot drinks at 90-95°C, the outer wall temperature of a single-walled paper cup can reach 65-70°C, while the outer wall temperature of a double-walled paper cup is approximately 50°C. Our measured data verifies this conclusion.
IV. Case Study of Practical Applications
4.1 Technical Specifications of Major Brands
Major paper cup manufacturers on the market have launched their own double-walled paper cup products, each with its own unique technical specifications:
Technical parameters of double-walled paper cups from Henan Xinding Paper Products Co., Ltd.:
Technical parameters of double-walled paper cups from Henan Xinding Paper Products Co., Ltd.:
Uses a "air insulation layer + food-grade PE coating" double-layer structure
Measured insulation performance is 60% better than traditional single-layer cups
In a 90℃ hot water test, the outer wall temperature was only 42℃
Uses a double-layer PE coating + air insulation layer design; after pouring 100℃ hot water, the outer wall temperature is 40% lower than that of ordinary paper cups
Measured insulation performance is 60% better than traditional single-layer cups
In a 90℃ hot water test, the outer wall temperature was only 42℃
Uses a double-layer PE coating + air insulation layer design; after pouring 100℃ hot water, the outer wall temperature is 40% lower than that of ordinary paper cups

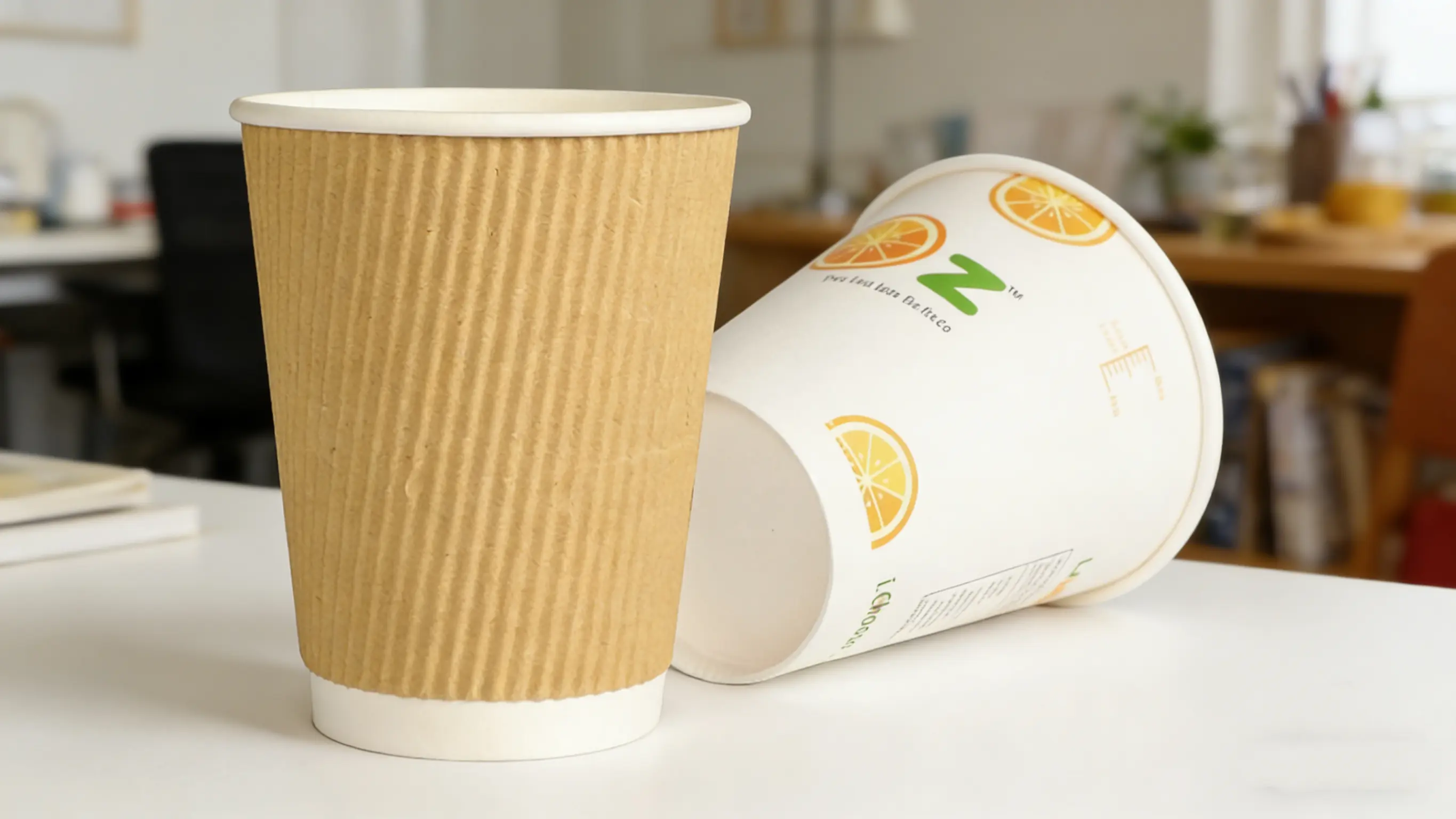

Technical characteristics of Wuhan Corrugated Paper Cups:
Uses an "air buffer layer" structure
The outer layer uses high-density corrugated cardboard, and the inner layer uses food-grade pulp paper
A 3-5mm air gap is maintained between the two layers
This reduces the surface temperature of the cup by more than 40% compared to single-layer designs
The outer layer uses high-density corrugated cardboard, and the inner layer uses food-grade pulp paper
A 3-5mm air gap is maintained between the two layers
This reduces the surface temperature of the cup by more than 40% compared to single-layer designs
Hot Cup Factory's double-walled paper cups:
Double-layer insulation design keeps drinks hot and hands cool
Uses a patented air gap design
No need for cup sleeves or "double cups"
Can be paired with a white lid, suitable for takeaway use
Uses a patented air gap design
No need for cup sleeves or "double cups"
Can be paired with a white lid, suitable for takeaway use
4.2 Consumer Feedback
Through research on e-commerce platforms and social media, we collected a large amount of consumer feedback on the use of double-walled paper cups:
Positive feedback:
"The double-layer design has excellent insulation; even a full cup of hot latte won't burn your hands."
"The cup is impressively thick; it doesn't leak at all when making milk tea, and it can handle both hot and cold drinks."
"I keep repurchasing these paper cups; they are very sturdy and have excellent insulation."
"The kraft paper double-layer material provides insulation and some heat retention; it doesn't soften even after holding water all day."
"The cup is impressively thick; it doesn't leak at all when making milk tea, and it can handle both hot and cold drinks."
"I keep repurchasing these paper cups; they are very sturdy and have excellent insulation."
"The kraft paper double-layer material provides insulation and some heat retention; it doesn't soften even after holding water all day."
Negative feedback:
Some consumers reported that the insulation performance of some brands of double-walled paper cups has decreased due to the thinning of the outer layer of paper.
Some consumers pointed out that the insulation effect of double-walled paper cups is not ideal for extremely hot liquids (such as hot tea).
Some consumers pointed out that the insulation effect of double-walled paper cups is not ideal for extremely hot liquids (such as hot tea).
4.3 Market Application Scenarios
Double-walled paper cups have shown good adaptability in different application scenarios:
Dine-in scenarios: In dine-in environments such as coffee shops and milk tea shops, double-walled paper cups can effectively solve the problem of burning hands and improve the dining experience for consumers. According to research, over 95% of consumers use hot beverage cups for less than one hour during their in-store consumption, and double-walled paper cups fully meet this need.
Takeaway scenarios: For takeaway and other scenarios requiring higher insulation, companies have introduced specialized double-walled hot beverage cup solutions. Actual test data shows that the outer wall temperature of double-walled paper cups is 12-15℃ lower than that of single-layer paper cups, significantly improving the carrying experience.
Home use: Consumers report that double-walled paper cups are very practical in home gatherings and entertaining guests, being both aesthetically pleasing and functional, and eliminating the need for coasters and other auxiliary tools.
Takeaway scenarios: For takeaway and other scenarios requiring higher insulation, companies have introduced specialized double-walled hot beverage cup solutions. Actual test data shows that the outer wall temperature of double-walled paper cups is 12-15℃ lower than that of single-layer paper cups, significantly improving the carrying experience.
Home use: Consumers report that double-walled paper cups are very practical in home gatherings and entertaining guests, being both aesthetically pleasing and functional, and eliminating the need for coasters and other auxiliary tools.
V. Conclusion
Through scientific experimental design and precise measurement data analysis, we have reached the following clear conclusions:
Double-walled ripple paper cups are indeed significantly superior to single-layer paper cups in terms of thermal insulation performance. Actual test data shows that when filled with 95℃ hot water, the outer wall temperature of double-walled paper cups is approximately 24-27℃ lower than that of single-layer paper cups, improving the insulation effect by about 60%. Specifically:
- Temperature reduction: Double-walled paper cups can reduce the outer wall temperature by 33-34%, keeping the outer wall temperature at around 50℃, far below the 80℃ or more of single-layer paper cups.
- Temperature rise rate: The temperature rise rate of double-walled paper cups is only 41.7% of that of single-layer paper cups, meaning that the heat transfer speed is significantly reduced.
- Effective thermal conductivity: The effective thermal conductivity of double-walled paper cups is 44% lower than that of single-layer paper cups, approaching the thermal conductivity of air, demonstrating the crucial role of the air layer.
- Handling safety: The outer wall temperature of double-walled paper cups is approximately 50℃, which is within the temperature range acceptable to the human body, while the outer wall temperature of single-layer paper cups is close to 80℃, which can easily cause burns.
In today's fast-paced modern life, a hot drink is often an important medium for relaxation and social interaction. The emergence of double-walled paper cups allows us to enjoy the warmth of hot drinks more comfortably without worrying about the risk of burns. This seemingly simple technological improvement actually reflects the role of technological progress in improving the quality of life. With increasing environmental awareness and continuous technological advancements, we believe that more innovative insulation technologies will be applied to paper cup products in the future, making our lives better. At the same time, we urge relevant companies to consider the practicality and safety of their products more carefully while pursuing commercial interests, providing consumers with better products and services.
